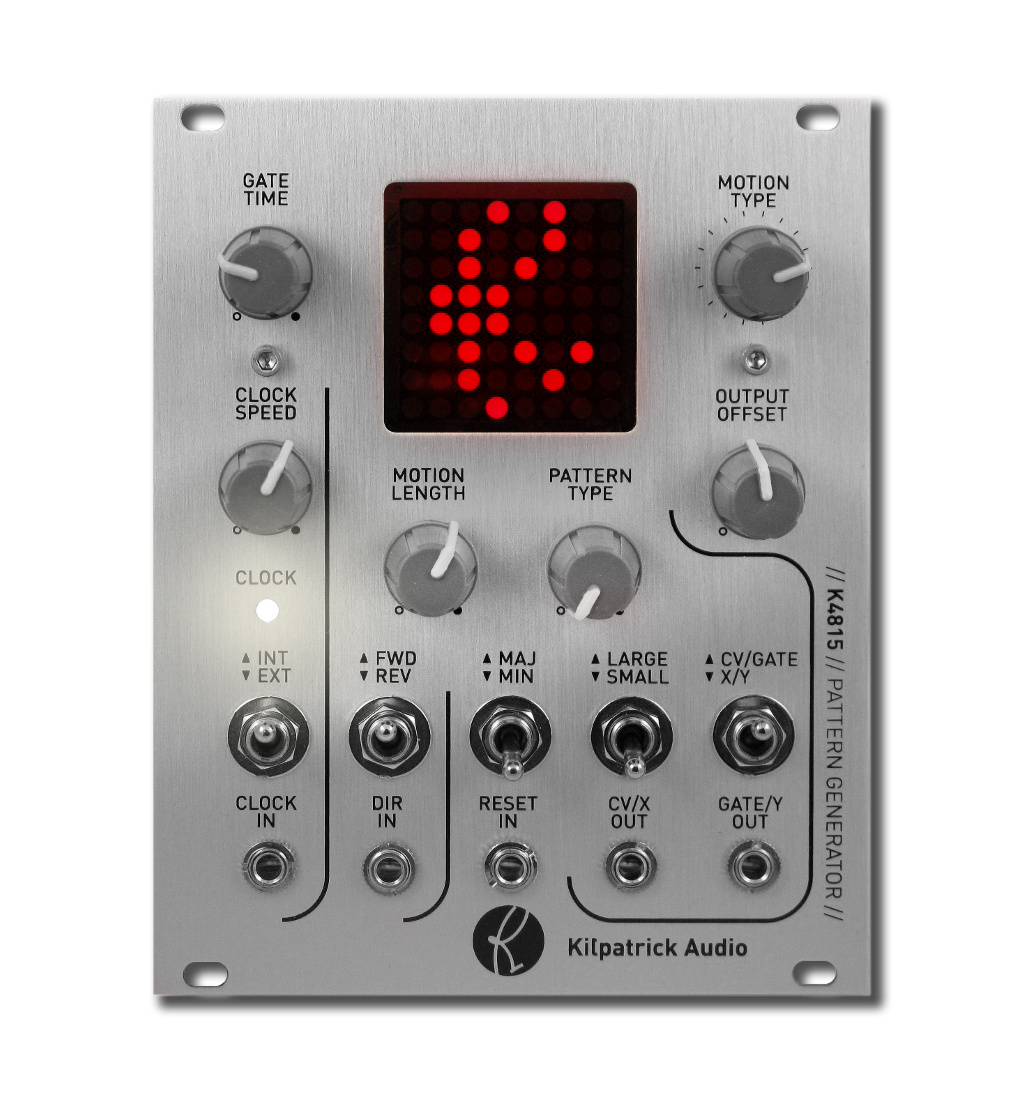

K4815 Production Model

K4815 // Pattern Generator


Eurorack CV and MIDI Pattern Generator - 20HP

As its premier offering in the modular synthesizer world, the K4815 Pattern Generator by Kilpatrick Audio packs incredible power into a small 20HP Eurorack module that offers virtually unlimited creative potential for modular players. The K4815 can produce notes and varying control voltages for a wide range of musical applications. Its unique approach to music creation is sure to have you finding new melodies and rhythms never heard before. Unlike a step sequencer, where the player picks each note in a sequence, the K4815 creates sequences by combining a scale, a visual pattern (as shown on the display) and a sequence playback motion to determine the rhythms and notes that are actually played. Other parameters can adjust the note and sequence length, as well as the transposition, direction of playback, and so on.

The K4815 is fully analog and MIDI compatible. The MIDI interface is available on an internal connector and is compatible with the K1600 MIDI Converter from Kilpatrick Audio. You can even build your own MIDI interface. See: AN-1 Simple MIDI Interface for a free design. The analog connections support three inputs for connecting analog clock, and analog control of the playback direction and pattern playback reset. The CV and GATE outputs are high performance analog outputs for controlling VCOs and envelope generators. High quality 12-bit DACs ensure accurate tuning, and jumper selectable voltage offset and trimming are provided internally to allow integration with most modular equipment.

But notes are not the only thing that can be produced with the K4815. In the alternate X/Y mode, varying voltages are produced on both the CV/X OUT and GATE/Y OUT. By using the X/Y mode, the playback position creates varying voltages and MIDI control changes which can be used as a source of modulation.

The essence of any sequencer is the clock. The K4815 has a high stability internal clock which can generate a wide range of tempos. The unit also supports analog (5V) clock on the CLOCK IN connector or MIDI clock. When the internal or analog clock is used, MIDI signals are generated automatically, making the system a useful MIDI clock generator or converter.

Pattern Generation Concept

New ways of creating melodies and control signals help to break new ground in music and sound. The K4815 helps you explore new melodies and rhythms using a unique concept of generating patterns. Unlike random pattern generators or ones based on various mathematical concepts, the K4815 bases its music-making foundation on simple scales, visually-designed patterns, and intellectually-designed motions. These three elements can be controlled by the player in realtime to create an enormous variety of sounds. And it is done in a visual way that is fun to use. Everything happens on the 8x8 LED matrix, which is both a visual indicator and a conceptual view of how the system works internally. Scales, patterns and motions are all mapped to points on the matrix, which show in realtime exactly what is happening.

The K4815 concept can be thought of as three distinct layers:

  • Scales - Underneath the 8x8 LED matrix are the notes which are assigned to each of the 64 points on the grid. The selected scale can be major or minor, large or small. These are selected with the MAJ/MIN and LARGE/SMALL switches. Only four choices might seem like a limitation, but what happens on the other two layers ultimately affects the rhythms and melodies that are produced.
  • Patterns - Patterns are visually designed icons, symbols and patterns which define which notes will play. They are shown in the background at all times. There are 32 patterns which can be selected with the PATTERN TYPE knob. If a point on the 8x8 LED matrix is lit, the underlying scale note is active. If the playback ball lands on that point, its note will play.
  • Motions - Motions define how a sequence is played. Each motion defines up to 64 steps in a sequence. Each step can land on any of the points on the 8x8 LED matrix. If a step lands on a point which is lit, a note will play. There are 64 different motions, some sequential and musically-designed, and others more abstract or geometrically-designed. By using MIDI it is possible transpose the scale, and also to start and stop motion playback with note commands, changing the K4815 into a special type of auto-arpeggiator.

Features and Specs

  • Eurorack (3U) form factor - 20HP width
  • 64 LED (8x8) multi-brightness grid to show patterns and playback
  • Clock control via internal clock, or MIDI or analog (5V) clock
  • Clock, direction and reset inputs (0V/5V = off/on)
  • CV/GATE or X/Y outputs - range: -5V to +5V
  • High-precision 12-bit DACs with internal trim adjustment
  • Internal MIDI header compatible with future Kilpatrick Audio modules or DIY breakout boards
  • Only 30mm deep (including ribbon cables)
  • Serial numbers up to 1009500: Requires +/-12V (less than 10mA) and +5V (less than 65mA)
  • Serial numbers from 1009501 onward: Requires +12V (80mA) and -12V (less than 10mA)
  • 16 pin Doepfer-style power cable used
  • Designed and made in Canada using high quality parts.
  • Warranty: 1 year

Downloads and Info

Firmware Updates

New firmware for the K4815 is available and can be updated by the user. All modules ship with the stock firmware but additional functionality can be obtained by updating. Please see the Firmware Updates page for information about updating your module.

Audio Samples

Here are a few test clips that were made during K4815 development that demonstrate the machine driving modular synths:

  • Test 1 - An early K4815 prototype driving Andrew's prototype Kilpatrick Audio modular synth. (VCO, ADSR, VCA, reverb, no filter)
  • Test Random - A production prototype K4815 testing its random mode driving a Doepfer A-111-5 mini synth module.

Availability

List Price: $449 CAD

Available through Authorized Dealers


Demo Videos

Synth Demo #1 - Showing the K4815

K4815 Pattern Generator Demo Video

Here's a little demo I made when trying out a new video camera. I explain some of the patch to my friend in the background. You can see some external control of the K4815 using a K3020 to control the clock and direction.
